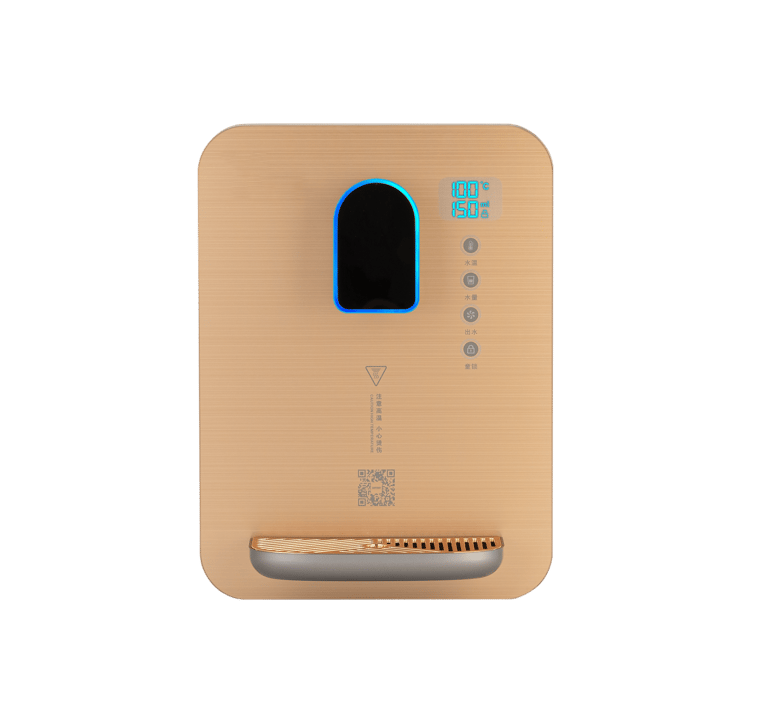

Golden color water dispenser

WALL MOUNTED PIPELINE WATER DISPENSER

wall-mounted pipeline water dispenser has 5 stages of water volume 150ML,230ML,300ML,500ML, 850ML, and 5 levels of water temperature 25C,45C,70C,85C, and 100C. It can come out hot water within 3 seconds.

Golden Color

Product Model: MT-900G

• Heating element: 316L titanium gold stainless steel heating element, high-temperature resistance up to 1500 degrees, power is not dampened, water output is stable, flow rate is uniform, only heat conduction is non-conductive, complete hydroelectric separation.

• Water dispenser safety protection: electronic child lock, prevent children from scalding, double swimming, temperature control, multiple anti-dry protection, custom anti-leak solenoid valve, effectively prevent water leakage, intelligent TDS water quality detection TDS is higher than 100 flashing alarm. The water tank is equipped with a UV UV deterioration lamp to effectively prevent secondary pollution of the water tank.

• Material: Full glass pane + plastic parts in matt spray paint + fuselage side trim strips + 304 stainless steel hollow water box high-end fashion.

• Drinking machine performance, fast 3 seconds hot, water volume 5 setting: 150 ml 230 ml 300 ml 500 ml 850 ml, water temperature 5 block setting: normal temperature 25 ° C 45 ° C 75 ° C 80° C,100 ° C

• After sale: Your satisfaction is our most important. We offer you the best quality products and the best customer service. If you have any questions about our products, please email us and we will provide you within 24 hours. Satisfied solution.

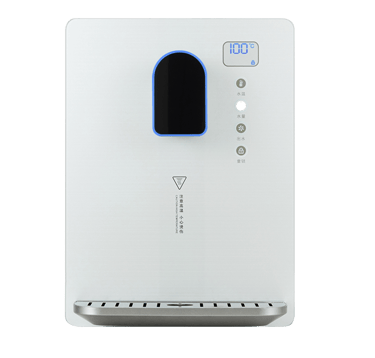

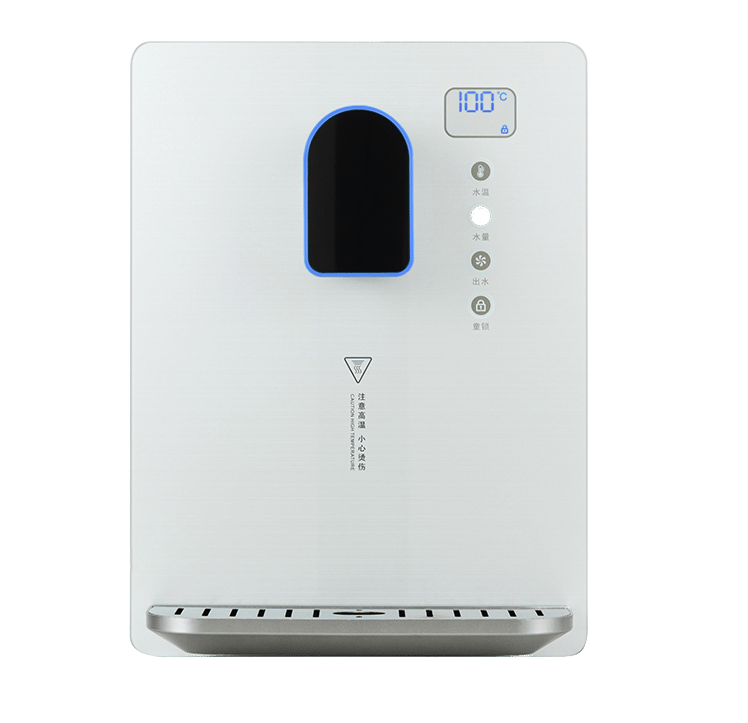

White Color

Product model: MT-S800
Nominal voltage: 220 V.
Nominal frequency: 50 Hz.
Rated power: 2200 W.
Anti-shock protection class: L
Ambient temperature: 5 °C - 40 °C.
Applicable water pressure: 0.1Mpa-0.4Mpa
Applicable water source: high-quality drinking water
Packing table: 1 set.
Net weight / gross weight: 3.1 kg / 3.75 kg
Product size: 320 × 85 × 430 mm
Package size: 345 x 205 x 465 mm.
Instant heat: fast 3 seconds.
Water volume adjustment in 5 steps: 150ml, 230ml, 300ml, 500ml, 850ml
Water temperature 5. Gear adjustment: normal temperature 25 ° C 45 ° C 75 ° C 80 ° C 100 ° C.
Material: whole glass panel + complete set of matte spray plastic parts + fuselage side trim strips
Internal electronic parts of the machine (except heating elements): all are safe electrical voltages below 12V and can also work without noise.

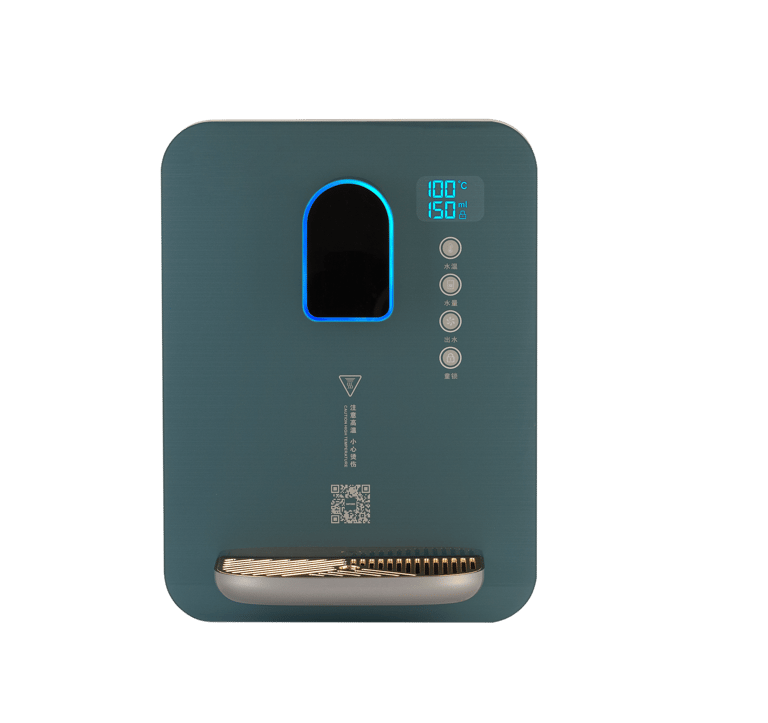

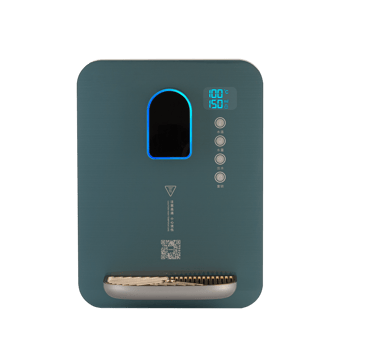

Dark Green

Product Model: MT-600DG

Design: The dispenser is designed to be mounted on a wall, which saves valuable floor space. It has a sleek and modern design that is sure to complement any decor. The dark green color gives it a unique and stylish appearance.

Functionality: This water dispenser is connected directly to a pipeline, which means that it provides a continuous supply of fresh and clean drinking water. It is equipped with a faucet that dispenses the water, and it also has a drain for excess water.

Features: The dispenser may have additional features such as a filtration system to remove impurities from the water, a temperature control system to adjust the temperature of the water, and a hot water dispenser for making tea or coffee.

Benefits: A wall-mounted pipeline water dispenser is an ideal solution for those who want a constant supply of fresh and clean drinking water without the need for bulky water bottles. It is also an eco-friendly option as it eliminates the need for plastic bottles.

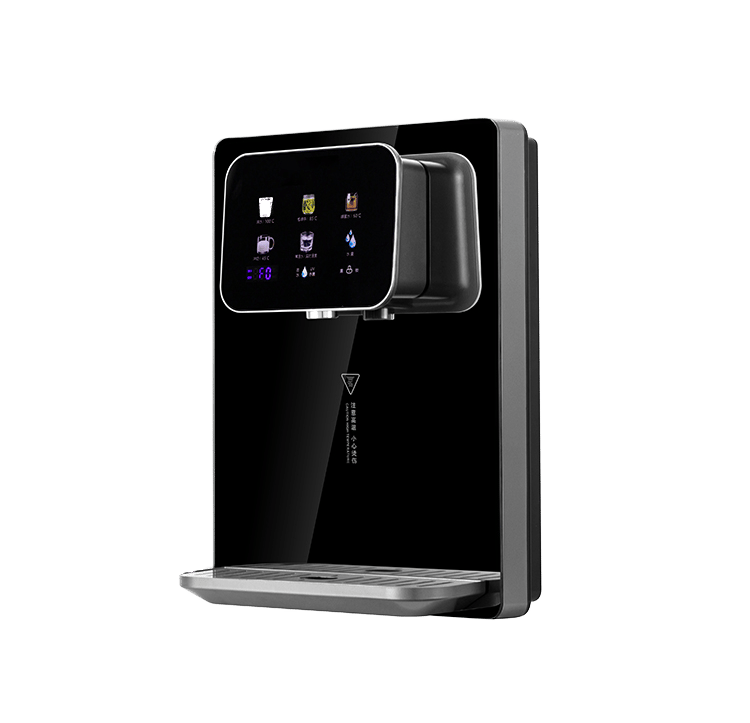

Black Color

Product model: MT-B600
Nominal voltage: 220 V.
Nominal frequency: 50 Hz.
Rated power: 2200 W.
Anti-shock protection class: L
Ambient temperature: 5 °C - 40 °C.
Applicable water pressure: 0.1Mpa-0.4Mpa
Applicable water source: high-quality drinking water
Net weight / gross weight: 3.1 kg / 3.75 kg
Product size: 320 × 85 × 430 mm
Package size: 345 x 205 x 465 mm.
Instant heat: fast 3 seconds.
Water volume adjustment in 5 steps: 150ml, 230ml, 300ml, 500ml, 850ml
Water temperature 5. Gear adjustment: normal temperature 25 ° C 45 ° C 75 ° C 80 ° C 100 ° C.
Material: whole glass panel + complete set of matte spray plastic parts + fuselage side trim strips
Internal electronic parts of the machine (except heating elements): all are safe electrical voltages below 12V and can also work without noise.

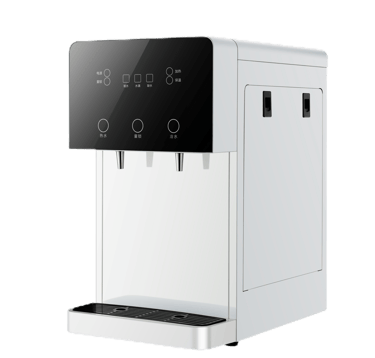

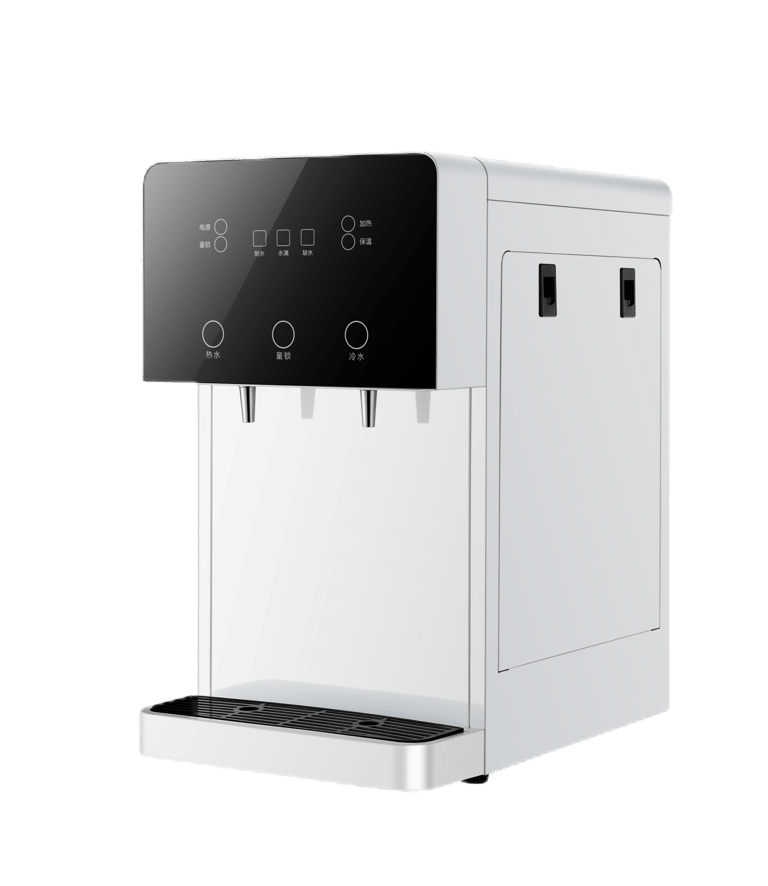

Desktop Water Dispenser(Black/White)

Product Model: MT-D-20

1. Compact Design: Our desktop water dispenser offers a space-efficient solution for easy access to clean and refreshing water.

2. Two Color Options: Available in both elegant black and crisp white, this dispenser seamlessly complements any workspace or home environment.

3. Effortless Dispensing: Enjoy hassle-free water dispensing with intuitive push-button controls for both hot and cold water options.

4. Advanced Cooling and Heating: Equipped with efficient cooling and heating mechanisms, this dispenser ensures your water is always at the right temperature.

5. Removable Drip Tray: The removable drip tray makes cleaning and maintenance a breeze, helping you maintain a tidy and hygienic setup.

• Optional Colors: Black & White / Black

• Faucet Quantity: 1 Hot Water, 1 Room Temperature Water

• Display Screen Type: Indicator Light Display

• Machine Dimensions (mm): 295 x 420 x 520

• Packaging Dimensions (mm): 310 x 430 x 540

• Heating Method: Hot Gallbladder Heating

• Heating Power Supply: 800W / 220V - 50Hz

• Room Temperature Water Tank Material: Food-Grade Transparent PP

• Inlet (Room Temperature Water Tank) Pipe Diameter: 1/4 inch inlet

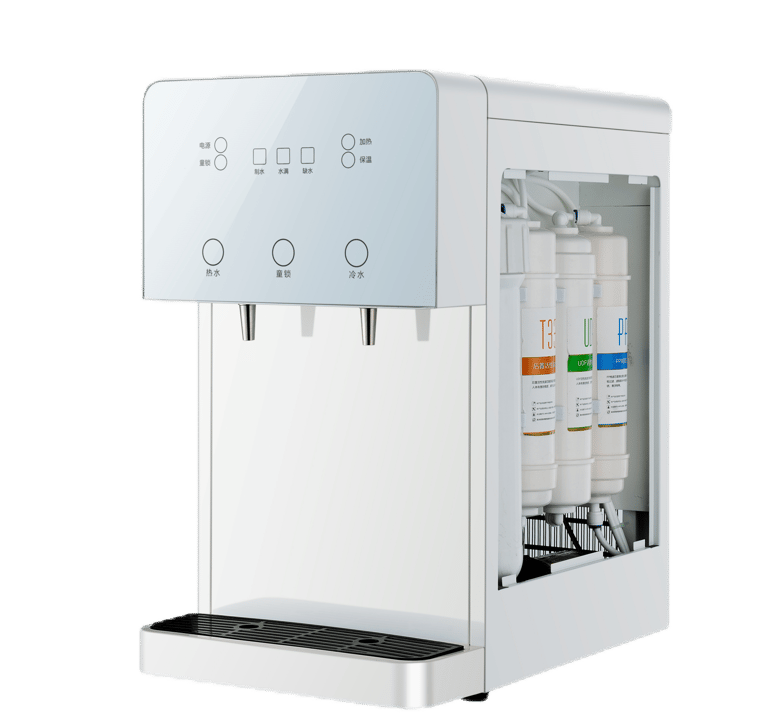

100G Direct Drinking Water Dispenser

Product Model: MT-DW-20

• Efficient Heating and Cooling: Equipped with a 3L hot gallbladder and 1.0L electronic / 3.5L compressor ice gallbladder, this system provides both ample hot and cold water supply, catering to various beverage preferences.

• Space-Saving Design: With the hot gallbladder ingeniously placed at the bottom of the machine casing, it maximizes available space while delivering efficient heating.

• High Water Supply Rate: Boasting a water supply volume of 15L per hour, this system ensures a quick and continuous availability of hot or room temperature water, perfect for busy environments.

• Reliable Cooling Performance: Featuring both electronic and compressor cooling options, customers can choose the cooling method that suits their needs, ensuring a refreshing and enjoyable drinking experience.

• Room Temperature Water Tank Capacity: 8L

• Hot Gallbladder Capacity: 3L

• Hot Gallbladder Installation Position: At the bottom of the machine case

• Hot Water Supply Volume: 15L/H

• Ice Gallbladder Capacity: Electronic 1.0L / Compressor 3.5L

• Cooling Power: 65W + 5W

• Net Water Flow Rate: 0.26L/min

• Drain (Sink Waste Water) Pipe Material: Manual

• Net Weight of Machine: 30KG

• Packaging Weight: 33KG

• Product Qualifications: 3C, National Health Approval

• Cooling Method: Electronic Cooling and Compressor Cooling, Different configurations with price differences

• 100G Direct Drinking

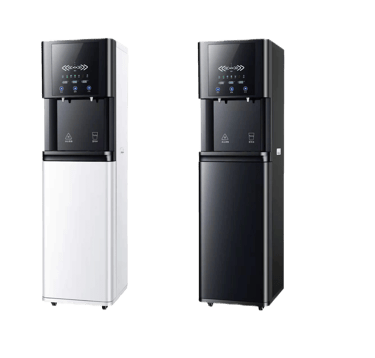

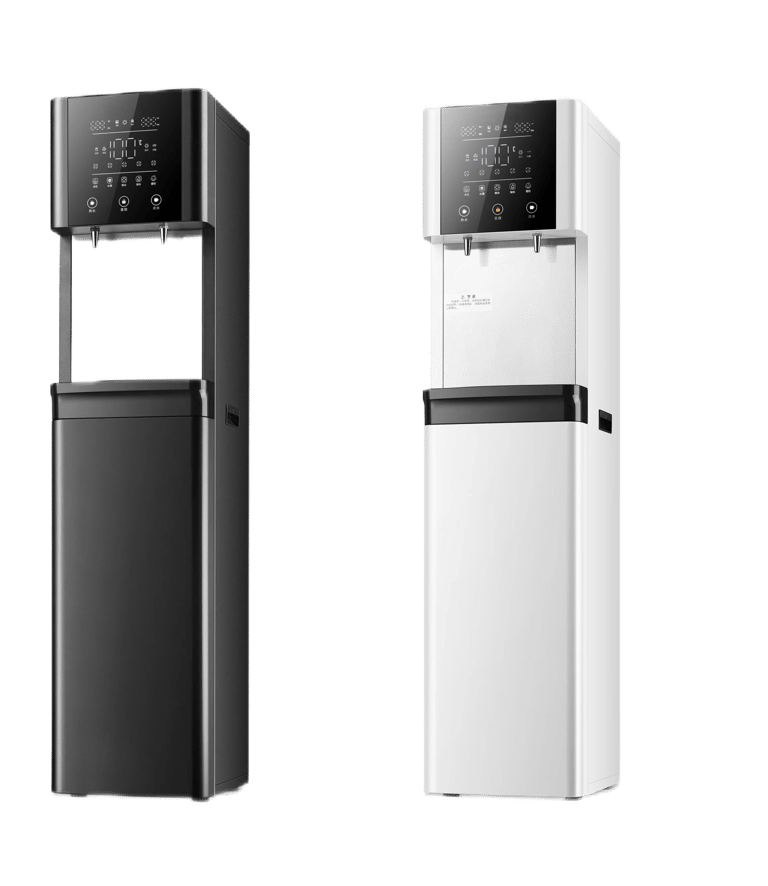

Vertical Water Dispenser(Black/White)

Product Model: MT-V-600

• Optional Colors: Black & White/Black

• Number of Water Outlets: 1 Hot Water, 1 Room Temperature

• Display Screen Type: LED Digital Screen/Indicator Light Display

• Machine Dimensions (mm): 320 x 390 x 1350

• Packaging Dimensions (mm): 450 x 377 x 1385

• Heating Method: Hot Gallbladder Heating

• Heating Power Supply: 800W/220V-50Hz

• Room Temperature Water Tank Material: Food-Grade Transparent PP

• Inlet (Room Temperature Water Tank) Pipe Diameter: 1/4 inch inlet

• Room Temperature Water Tank Capacity: 12L

• Hot Gallbladder Capacity: 5L

• Hot Gallbladder Installation Position: In the middle of the machine case

• Hot Water Supply Volume: 20L/H

• Ice Gallbladder Capacity: Electronic 1.0L / Compressor 3.5L

• Cooling Power: 65W + 5W

• Net Water Flow Rate: 0.26L/min (Regular), 1.05L/min (Maximum)

• Drain (Sink Waste Water) Pipe Material: Standard Manual Can be configured for under-counter drainage

• Net Weight of Machine: 30KG

• Packaging Weight: 33KG

• Product Qualifications: 3C, National Health Approval

• Cooling Method: Electronic Cooling and Compressor Cooling

• Note: If a pressure tank is required, an additional cost will apply

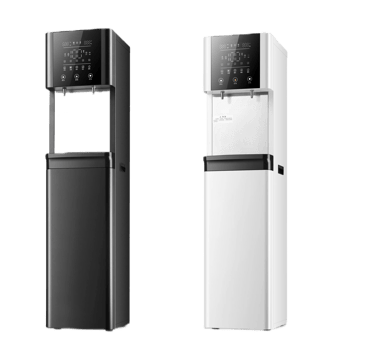

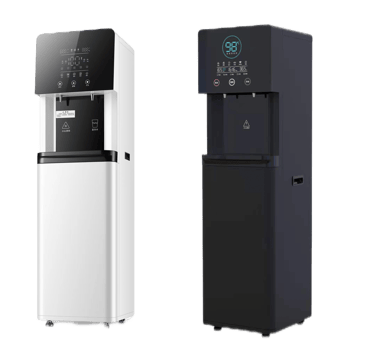

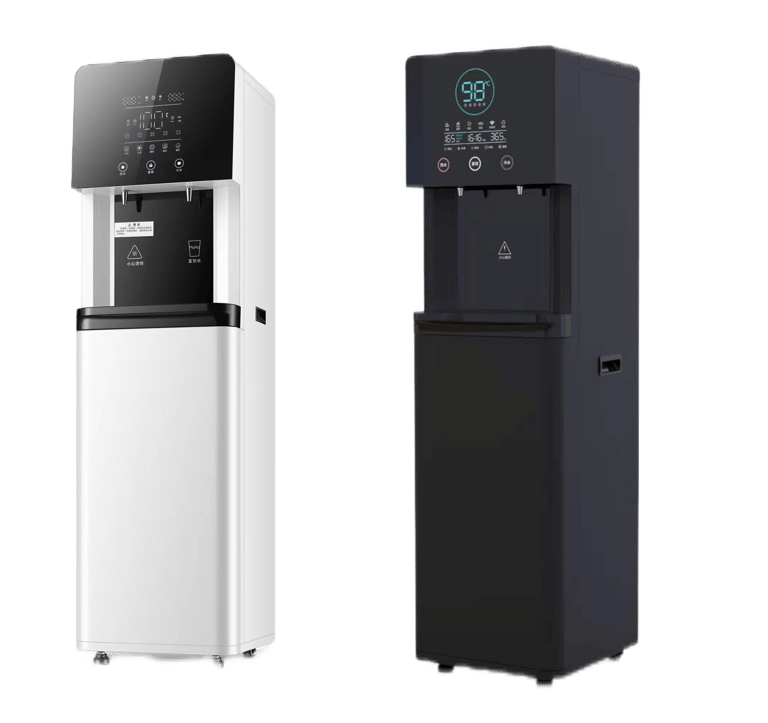

1000W Vertical Water Dispenser(Black/White)

Product Model: MT-DV-E600

• Optional Colors: Black & White/Black

• Number of Water Outlets: 1 Hot Water, 1 Room Temperature

• Display Screen Type: LED Digital Screen

• Machine Dimensions (mm): 400 x 400 x 1450

• Packaging Dimensions (mm): 460 x 460 x 1490

• Heating Method: Hot Gallbladder Heating

• Heating Power Supply: 1KW/220V-50Hz

• Room Temperature Water Tank Material: 304 Stainless Steel/Food-Grade Transparent PP

• Inlet (Room Temperature Water Tank) Pipe Diameter: 2/5 inch inlet

• Room Temperature Water Tank Capacity: 12L

• Hot Gallbladder Capacity: 4.97L / 10L (1600 model)

• Hot Gallbladder Installation Position: In the middle of the machine case

• Hot Water Supply Volume: 20L/H

• Ice Gallbladder Capacity: Electronic 1.0L / Compressor 3.5L

• Cooling Power: 65W + 5W

• Net Water Flow Rate: 0.26L/min (Regular), 1.05L/min (Maximum)

• Drain (Sink Waste Water) Pipe Material: Standard Manual Can be configured for under-counter drainage

• Rental: Can add 365 days of timed usage (40 yuan)

• Net Weight of Machine: 35KG

• Packaging Weight: 38KG

• Product Qualifications: 3C, National Health Approval

• Cooling Method: Electronic Cooling and Compressor Cooling

• Note: If a pressure tank is needed, an additional cost will apply. If additional ice gallbladder capacity is needed, an additional cost will apply.

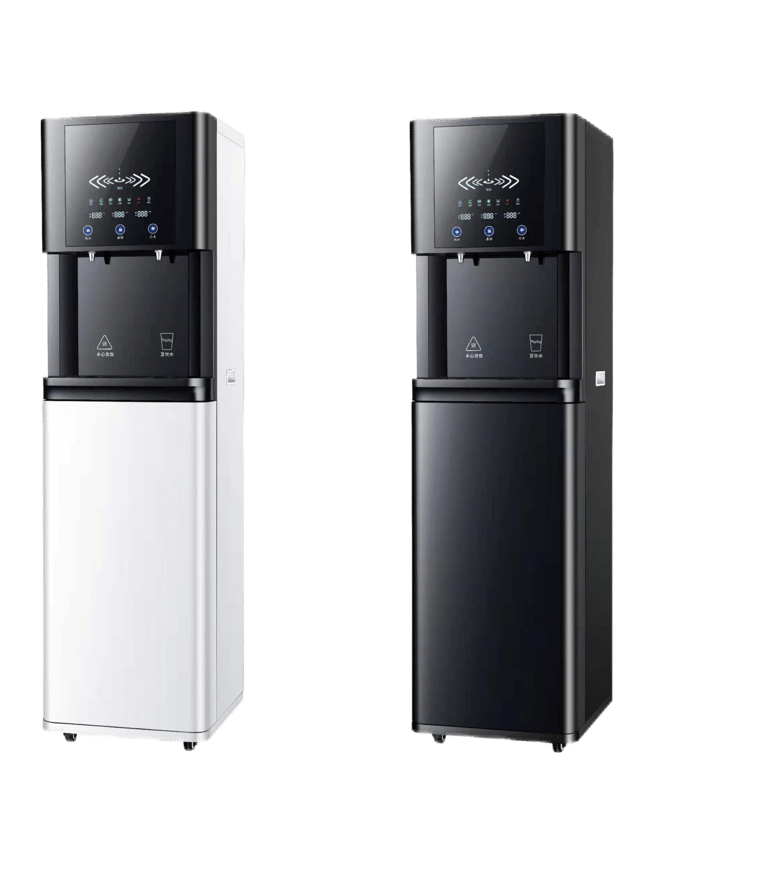

Vertical Water Dispenser(Black/White) 304 Stainless Steel Water Tank

Product Model: MT-V-E300A

• Optional Colors: Black & White/Black

• Number of Water Outlets: 1 Hot Water, 1 Room Temperature

• Display Screen Type: LED Digital Screen

• Machine Dimensions (mm): 400 x 400 x 1450

• Packaging Dimensions (mm): 460 x 460 x 1490

• Heating Method: Hot Gallbladder Heating

• Heating Power Supply: 1KW/220V-50Hz

• Room Temperature Water Tank Material: 304 Stainless Steel

• Inlet (Room Temperature Water Tank) Pipe Diameter: 2/5 inch inlet

• Room Temperature Water Tank Capacity: 10L

• Hot Gallbladder Capacity: 5L/10L

• Hot Gallbladder Installation Position: In the middle of the machine case

• Hot Water Supply Volume: 20L/H

• Ice Gallbladder Capacity: Electronic 1.0L / Compressor 3.5L

• Electronic Cooling Power: 65W + 5W

• Net Water Flow Rate: 0.26L/min (Regular), 1.05L/min (Maximum)

• Drain (Sink Waste Water) Pipe Material: Standard Manual Can be configured for under-counter drainage

• Rental: Can add 365 days of timed usage (40 yuan)

• Net Weight of Machine: 35KG

• Packaging Weight: 38KG

• Product Qualifications: 3C, National Health Approval

• Note: If a pressure tank is needed, an additional cost will apply. If additional ice gallbladder capacity is needed, an additional cost will apply. Both 5L and 10L options are available. Also, there are options for 100G and 400G RO direct drinking machines.
